Natural Gas Pressure Reduction Station (PRS) Project for our Canadian Client completed


The special containerized design, flexible PRS solution is completed by Palmet group Turkey and the design was approved by “Petra Engineering” of Canada (design according to CSA)

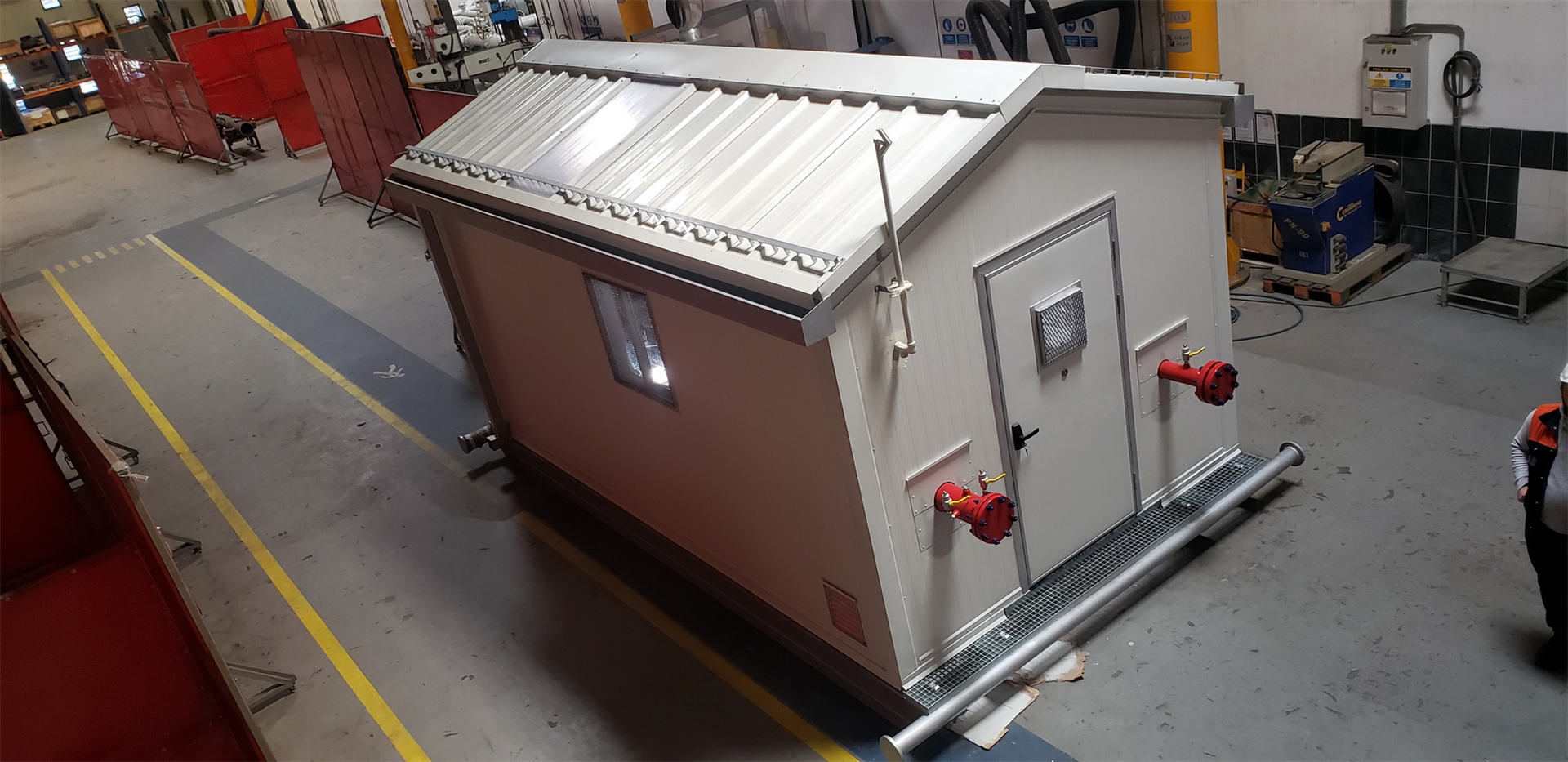

The container was designed in such a way to work extreme low temperature climatic conditions, with special wall structure to withstand harsh environmental challenges. In inner walls of the container is cladded with perforated steel liners to reduce noise emissions and levels. The container has two roof light panels constructed from Poly carbonate clear material.

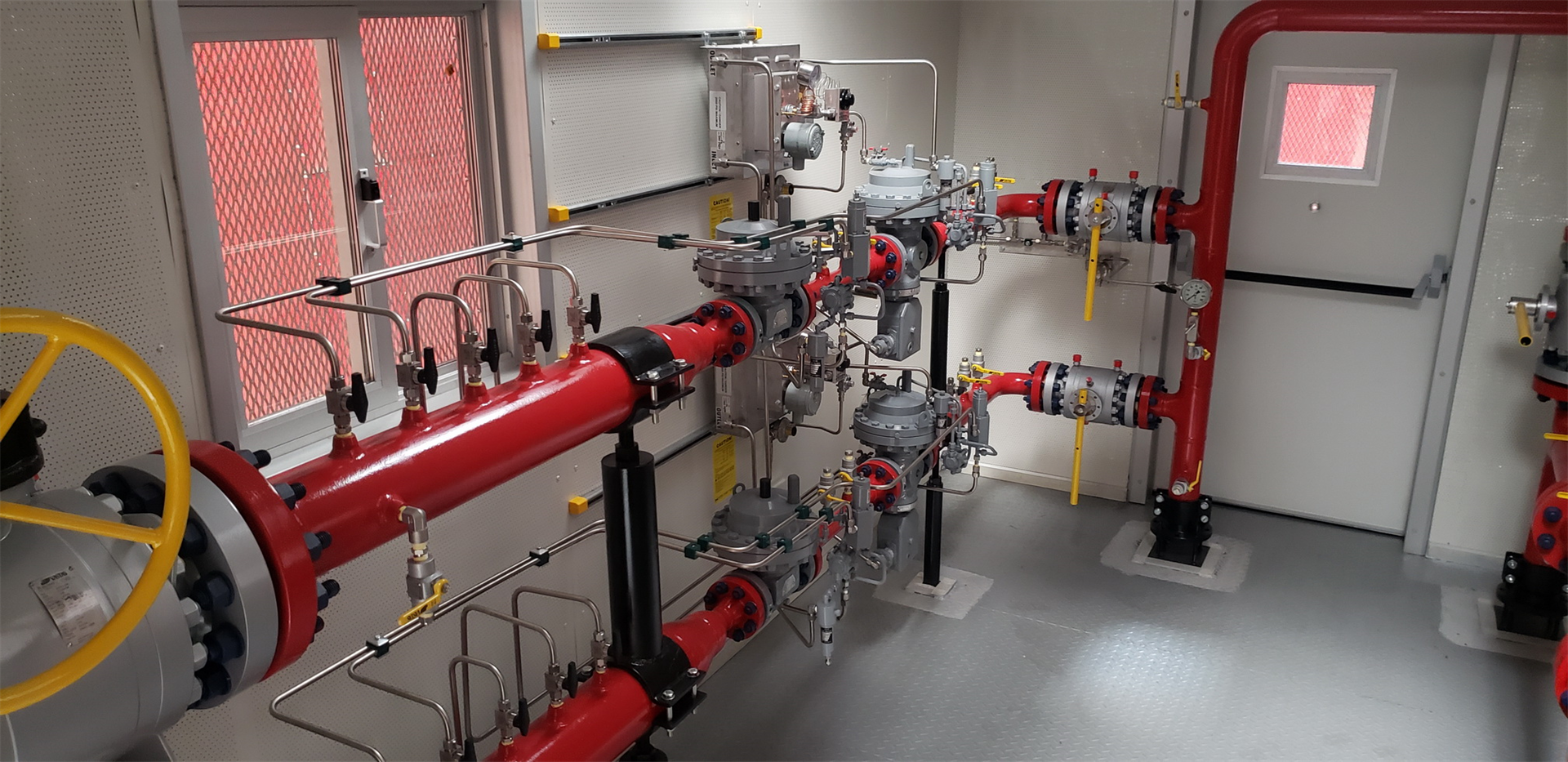

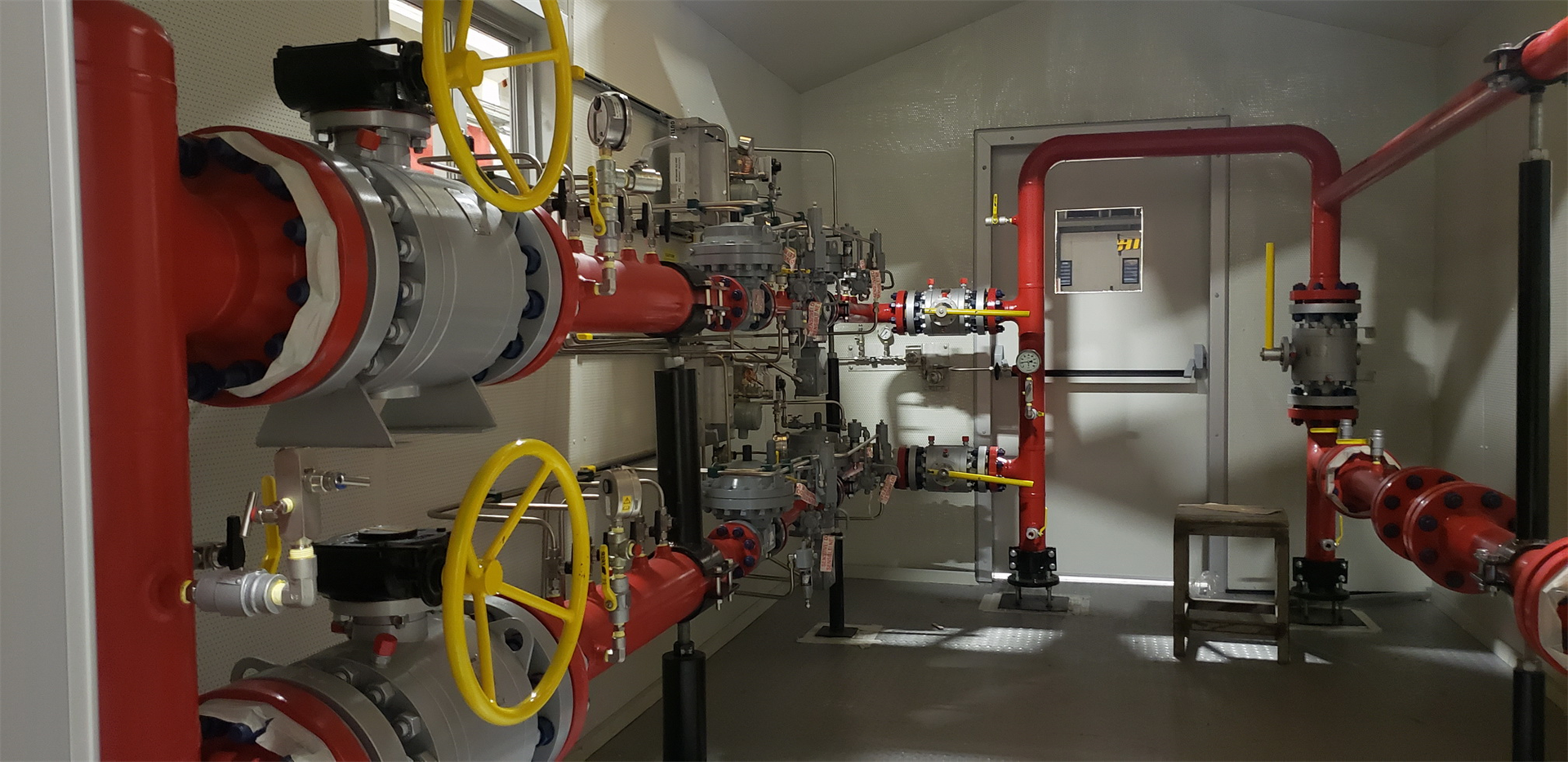

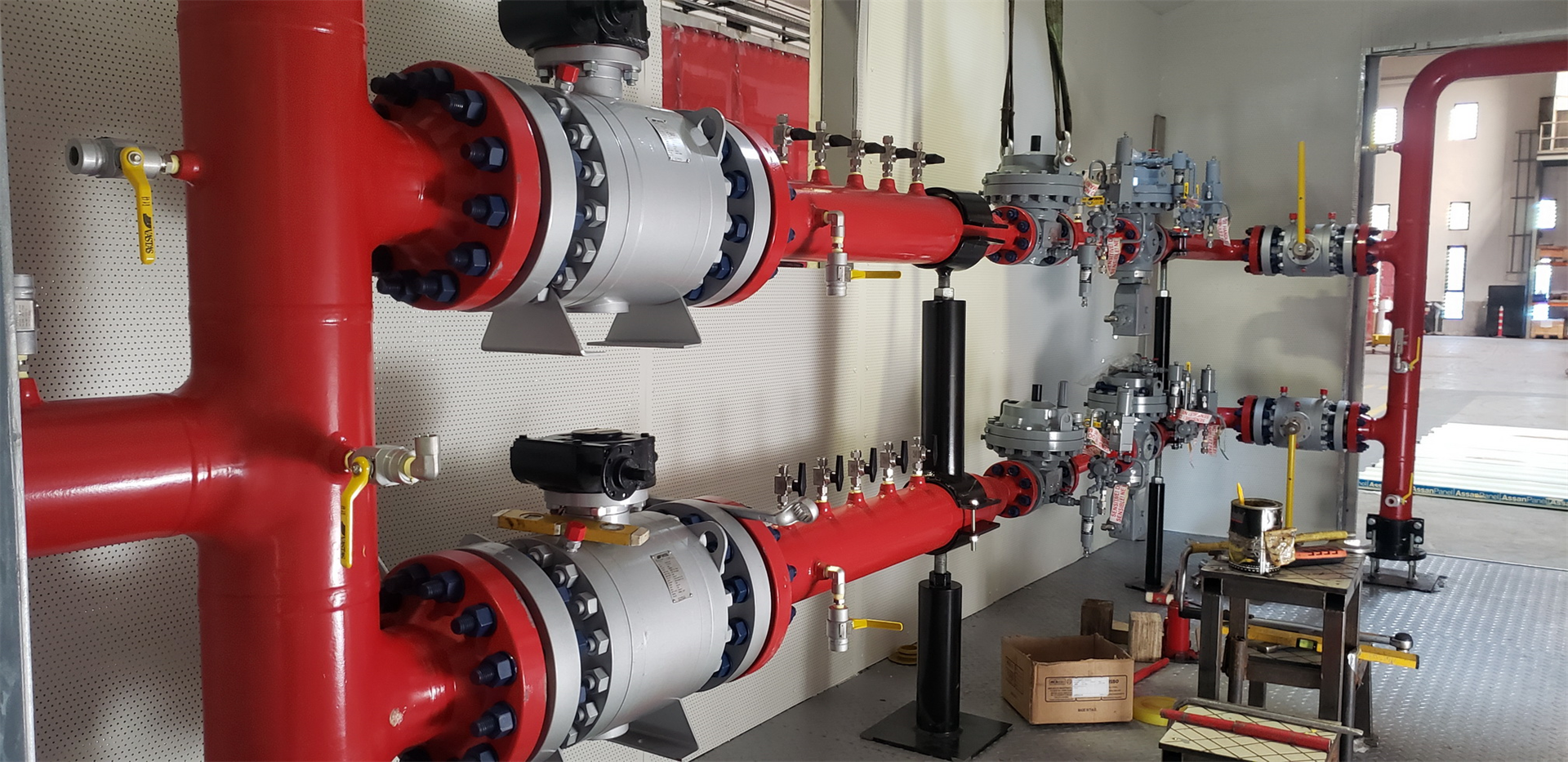

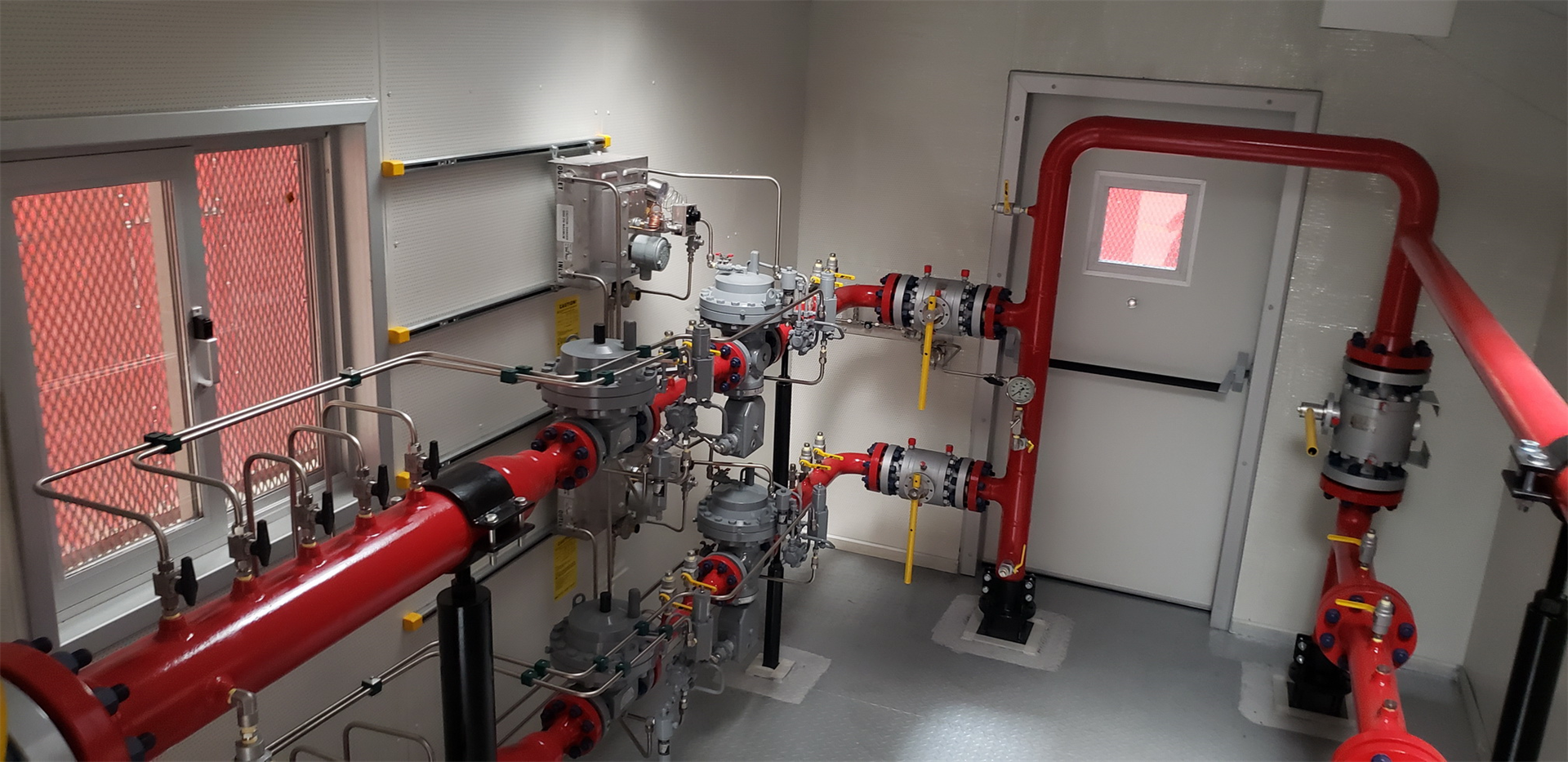

Upon completion the mechanical skid (spool) was hydro tested at 150 bars and after the assembly of spool pieces, valves regulators etc. was tested with N2 injection at 110 bars. Customers requirements suggested to use Fischer regulators (EZHSO and EZHOSX) for the active and monitor regulators.

The container was tested under rain simulation to be sure that there are no water ingress within the container.

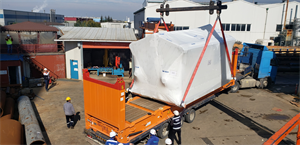

The container was packed with a special type overseas specific transportation packaging material prior to shipment. Some parts of the container (such as the relief pipe, and the ventilation components were removed to achieve height restrictions for transportation)
